High Brightness LED Flood Light IP65 Waterproof Outdoor Reflector 10W-200W

The AK LED flood light series is built for durability and high-output performance in outdoor and semi-industrial applications. Featuring a sturdy construction and optimized heat dissipation, it ensures stable operation even in harsh environments. Available in a range of power options, the AK series is ideal for illuminating loading areas, parking lots, signage, sports grounds, and building perimeters. Its reliable performance and low maintenance make it a cost-effective choice for contractors, project developers, and wholesale buyers.

Category:
Mains
Application:
Outdoor
Material:
Die-cast Aluminum+Glass
Colour:
Gray
CCT Turnable:
No-Single CCT
Stock Status:
In Stock
Protection Level:
IP65
Certification:
CE / RoHS / IEC 60598-1 / IP Rating Test Report

Inquire Now

Product Details

Product Features:
⚪ Durable Powder Coating
Special outdoor powder coating provides excellent resistance to corrosion and rust.
⚪ 10KV SPD (Optional)
Ensures stable performance and protects against power surges; IP65-rated for waterproofing and extended service life.
⚪ Anti-Glare Tempered Glass
IK07-rated tempered glass with high light transmittance minimizes glare and maximizes brightness.

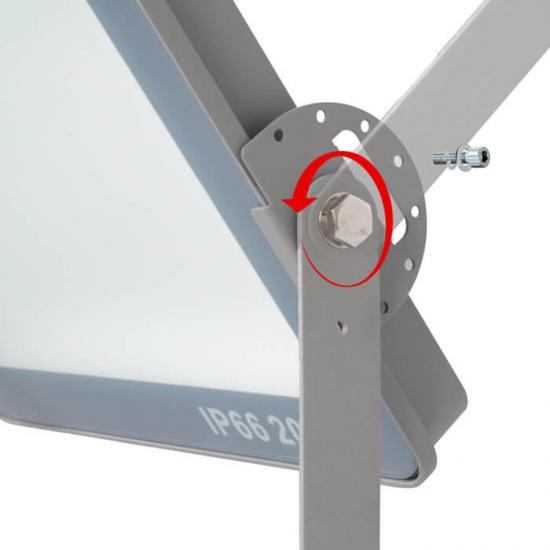

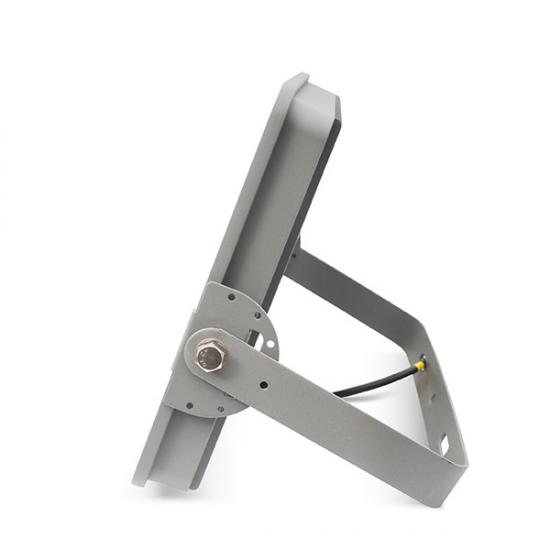

⚪ Inclined Mounting Brackets
Simplifies installation process, improves efficiency, and reduces labor costs.
⚪ Safety Lock Mechanism
Secure clasp system reinforces the housing and glass cover, adding a second layer of protection.

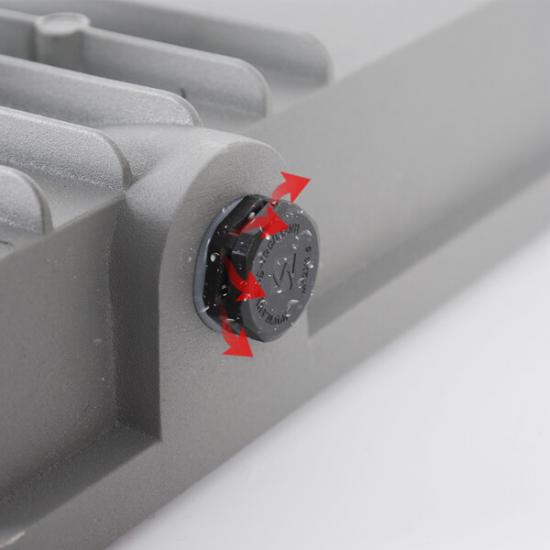

⚪ Streamlined Structure
Integrated multi-function plug helps with pressure release and enhances waterproof performance.

Application Areas:
The HS-AK LED Flood Light delivers effective illumination for various outdoor applications, including residential gardens, building facades, parking areas, warehouses, streets, and roads. Suitable for both commercial and municipal lighting projects.

Basic Parameters

Model No.	HS-AK-10W	HS-AK30W	HS-AK-50W	HS-AK-100W	HS-AK-150W	HS-AK-200W
Chip Type	12SMD2835	36SMD2835	64SMD2835	132SMD2835	180SMD2835	252SMD2835
Voltage	AC110-130/220-240V
Wattage	10W	30W	50W	100W	150W	200W
Luminous Flux	900Lm	2700Lm	4500Lm	9000Lm	13500Lm	18000Lm
Lamp Viewing Angle	120°
Color Temp	3000K / 4500K / 6000K
Base	Wire
Material	Die-Casting Aluminum + Glass
CRI	Ra>83
Warranty	3 years
IP	65
Light size	80×26×60mm	140×26×116mm	207×26×150mm	283×32×246mm	328×32×246mm	392×40×297mm
